Description

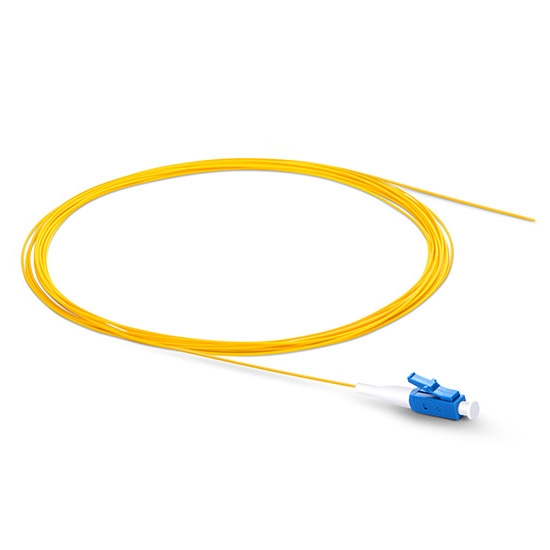

Length: 1 metre – ideal for splice enclosures, fiber distribution panels, and connecting trunk cables.
Fiber Type: Single-mode OS2 (9/125 µm) – optimized for long-distance, low attenuation transmission.
Connector: LC (Lucent Connector) – small form factor, precision polished UPC/PC/UPC depending on exact configuration. (Bare end for splicing)
Jacket Material: LS0H / LSZH – safer, low smoke, low halogen; suitable for indoor installations like server rooms.
Cable OD & Construction: Approx. 2.0 mm cable outside diameter ±0.1 mm; buffer diameter ~900 µm; includes strength members such as aramid yarn for mechanical stability.
Operating Temperature: −40°C to +85°C; durable in a range of environmental conditions.
Insertion Loss: Typical values better than 0.35 dB (factory tested) to ensure minimal signal loss.
Standards & Compliance: Compliant with fiber pigtails line, meets ISO/IEC 11801, ANSI/TIA-568, Telecordia GR-409, and others; meets safety and optical standards.
Durability / Bend Radius: Minimum bend radius for installation around 30 mm; long-term bend radius ~20 mm; robust against handling.
