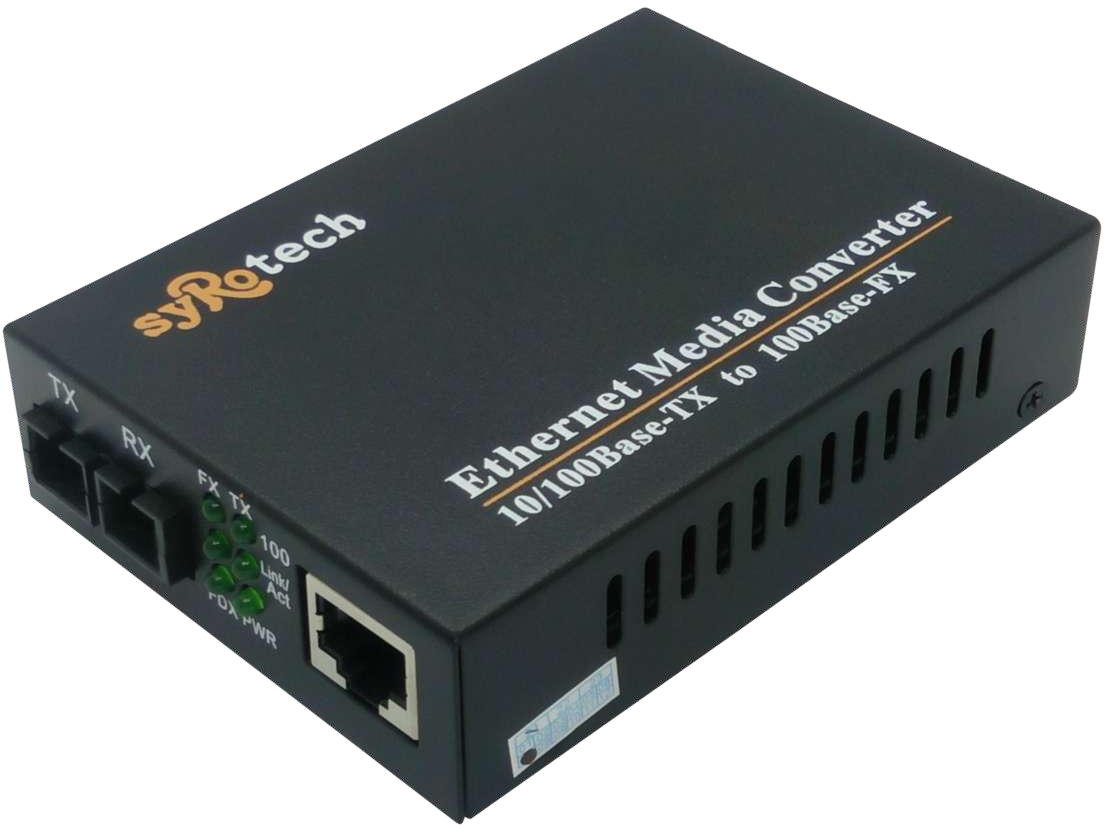

Description

Data Rates: 10/100 Mbps on copper, ~155 Mbps on fiber
Ports:
Copper: 1 × RJ-45 (10/100 Mbps)
Fiber: 1 × SC connector, single-mode dual-fiber
Wavelength: 1310 nm; Fiber Reach: up to 20 km
Transmission:
Auto-sensed full/half duplex (10/100 Mbps)
MDI/MDIX auto-negotiation
Store-and-forward, 100 Mbps cut-through
Packet size up to 1518 bytes
Supports VLAN, VoIP, QoS packets, STP, flow control, broadcast suppression
Hardware:
Power consumption: <3 W Power supply: DC 5 V / 1 A (via AC 100–240 V to 5 V adapter, or -36 V to -72 V optional)
Indicators: PWR, Fiber Link/Act, Duplex, LAN Link/Act, 100M, FX
Physical / Environmental:
External dimensions: approx. 94 × 70 × 26 mm
Weight: approx. 400 g (external), 500 g (internal)
Operating temp: –10° to 55 °C; storage: –40° to 85 °C; humidity: 5–95% non-condensing
Form Factors:
Desktop, wall-mount, chassis, or DIN-rail installation
