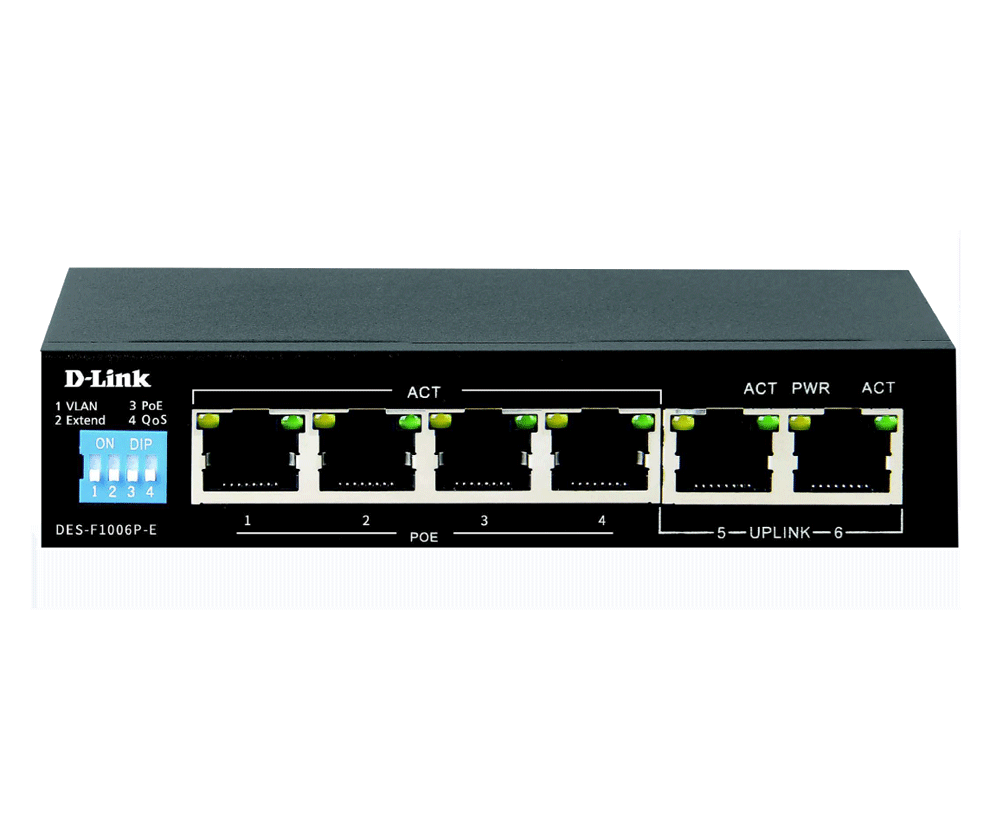

Description

Ports:
4 × 10/100 Mbps PoE RJ-45 ports (IEEE 802.3af/at)
2 × 10/100 Mbps uplink RJ-45 ports
PoE Budget: Up to 60 W total; up to 30 W per port
Long Reach: Supports PoE/data transmission up to 250 m in Extend mode
Protection: 6 kV lightning (surge) protection
Performance Features:
IEEE 802.3x flow control
Auto MDI/MDIX crossover
Store-and-forward switching
Switching fabric: ~1.2 Gbps; forwarding rates up to ~148,800 pps at 100 Mbps
Design: Compact, fanless, plug-and-play with desktop form factor
Standards: IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX), IEEE 802.3af/at, auto NWay
Highlights: VLAN isolation, QoS and Extend modes for enhanced network control and resilience
Application: Ideal for IP surveillance cameras, wireless APs, VoIP phones, and SMB networking.
